LCD 2.4'' Shield for Arduino with Extra Connector

Description:

The shield is fully assembledtested and ready to go. No wiringno soldering! Simply plug it in and load up our library - you'll have it running in under 10 minutes! Works best with any classic Arduin (UNO/Duemilanove/Diecimila). This shield does NOT work with the Mega Arduin but its going to be half the speed of the Uno-type boards because of the way the Mega rearranges all the pins (there is no way to get around this!) This shield is not Leonardo-compatible

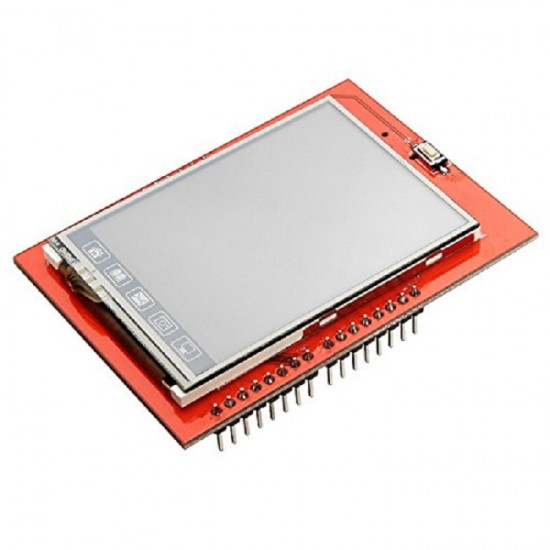

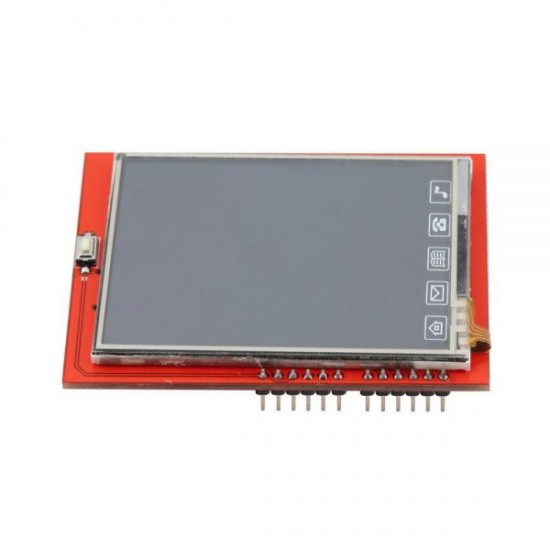

Spice up your Arduin project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4" diagonal) bright (4 white-LED backlight) and colorful (18-bit 262000 different shades)! 240x320 pixels with individual pixel control. It has way more resolution than a black and white 128x64 display. As a bonusthis display has a resistive touchscreen attached to it alreadyso you can detect finger presses anywhere on the screen.

Features:

• 2.4" diagonal LCD TFT display
• 240x320 resolution18-bit (262000) color
• spfd5408 controller with built in video RAM buffer
• 8 bit digital interfaceplus 4 control lines
• Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 23 and analog 4 and 5. Pin 12 is available if not using the microSD
• Works with any Arduin '328 or Mega (Leonardo not supported yet)
• 5V compatible! Use with 3.3V or 5V logic
• Onboard 3.3V 300mA LDO regulator
• 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
• 4-wire resistive touchscreen
