Omron, 24VDC Coil Non-Latching Relay 4PDT, 5A Switching Current Plug In, 4 Pole

Omron Non-Latching Relay

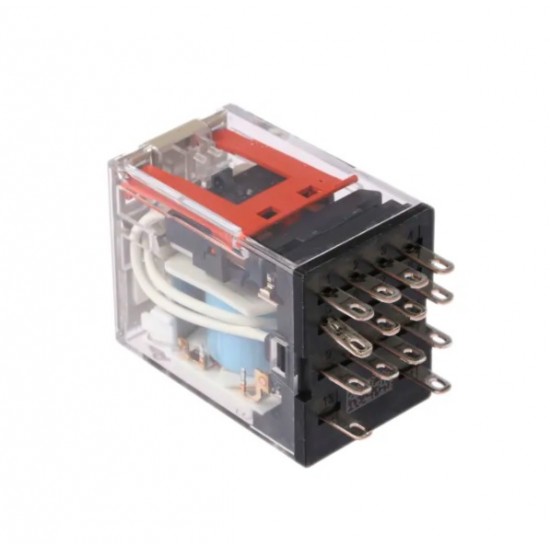

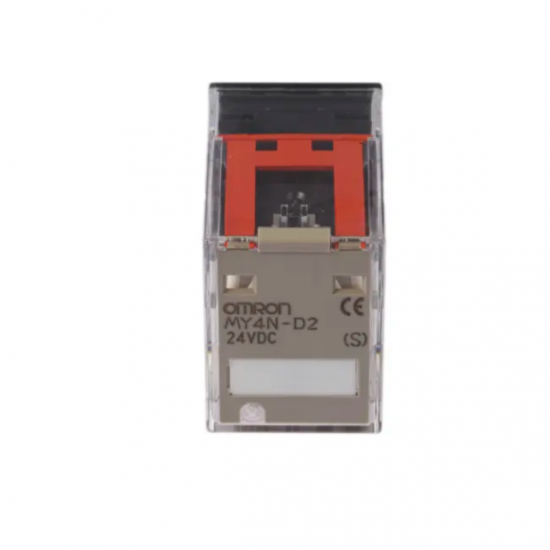

The Omron MY series plug-in mount versatile non-latching relay has a contact configuration of 4PDT. It is actuated with 24VDC coil voltage and 5A switching current. This relay has a LED indicator and built-in diode.

Features and Benefits

Coil resistance is 636ohm
Contact material is AgNi
Coil to contact isolation is 2000VAC
Operating temperature ranges between -55°C and 70°C
Reduces wiring work by 60% when combined with the Pyf-Pu push-in plus socket
2.6mm wide pins offer higher conductivity and less temperature increase
Plug-in terminal type

Certifications

CSA certified
UL approved
VDE

Approvals

VDE; UL; CSA

Specifications
Attribute Value
Coil Voltage 24V dc
Coil Power 900mW
Coil Resistance 636 Ω
Isolation Coil To Contact 2kV
Contact Configuration 4PDT
Mounting Type Plug In
Switching Current 5A
Terminal Type Plug In
Number of Poles 4
Maximum Switching Voltage AC 250V ac
Maximum Switching Voltage DC 30V dc
Length 28mm
Maximum Switching Power AC 1.25 kVA
Depth 21.5mm
Maximum Switching Power DC 150 W
Series MY4
Height 36mm
