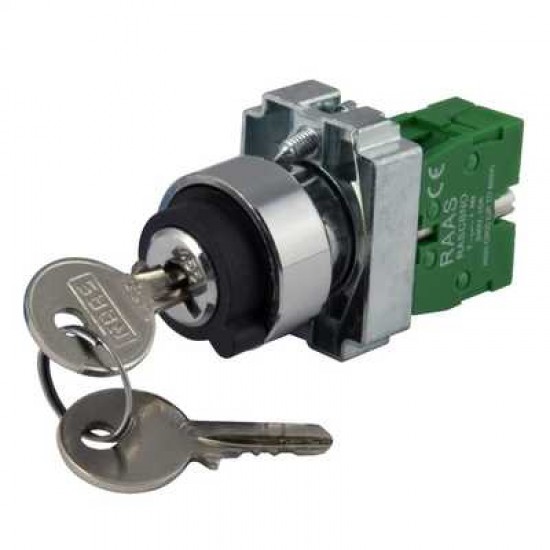

Key Switch Panel Mount 22.5mm
High Quality Product
Proved by satisfied customers
- Stock: In Stock
- Model: Panel
- Weight: 150.00g
- Dimensions: 4.00cm x 4.00cm x 2.00cm
190 samples sold
$ 8.46
Ex Tax: $ 8.46
Key Switch Panel Mount 22.5mm
Descriptions:
It is used in control systems such as dashboards and consoles in industrial automation systems. The panel switch can switch currents up to 1 A in its contact system.
The connection to their contact terminals is made by means of screw terminals to which operating cables with a cross section up to 2.5 mm2 can be fed.
Features:
- IP65 chrome bezel
- Suitable for panel door and enclosed control station mounting
- Complete with mounting coupler and contact block
Specification:
- Colour Black
- Contact Configuration 1 NO
- Cut Out 22.5mm
- Depth 62mm
- Diameter 29mm
- Dimensions (Dia)29 mm x (W)40 mm x (D)62 mm
- Guarantee 1 Year
- IP Rating IP65
- Material Metal/Plastic
- Mounting Panel
- Number of Positions 2
- Operation Type Spring Return
- Packaging Types Box
- Standards IEC 947-5-1, EN 60947-5-1
- Supplied With 2 x Keys
- Weight 0.15000kg
- Width 40mm
